Features
Shock absorption

Easy installment and keep up

Resistant to medium and temperature, pressure

This product can greatly reduce vibration and noise, pipeline system but can not solve all kinds of pipe interface displacement, degree of axial stretching problems.

The material can be made according to different acid, alkali, corrosion, oil heat and other kinds of species to adapt to various of media and the environment.
Material is a polar rubber, sealing, light weight, easy installation and maintenance, long life, but to avoid contact with sharp metal instruments, so as not to puncture the sphere.

Without supporting bracket should use flexible stent, installation bolt tightened to use the diagonal method

Such as the pipeline pressure is too high, the application of limit bolts to both ends of the flange together

Flange connection standard adapt GB standard as to other standards, can be explain. Level of the product working pressure 0.1-6.0Mpa.
Technique parameter

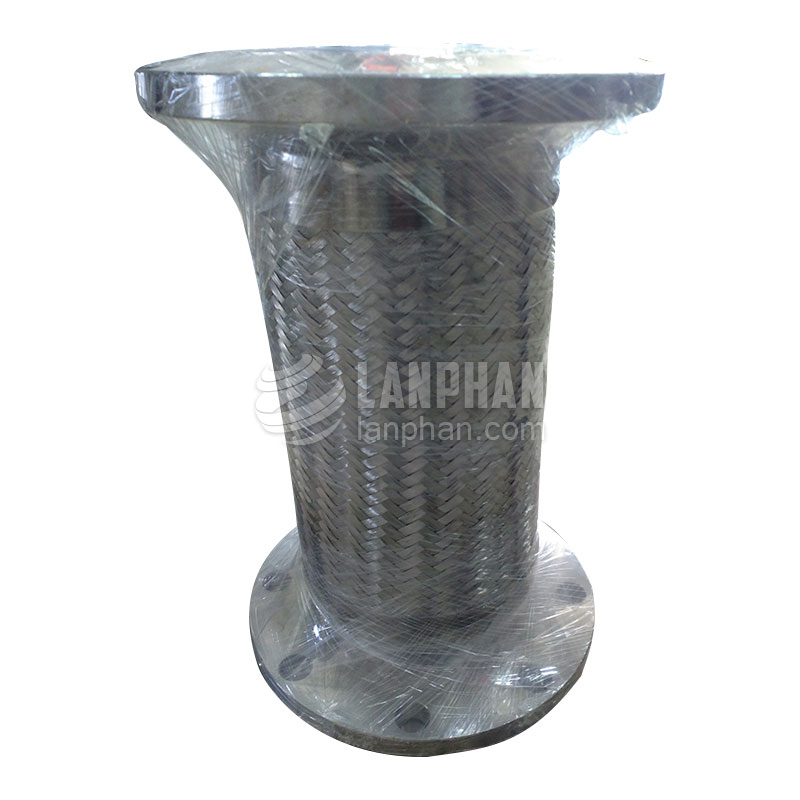

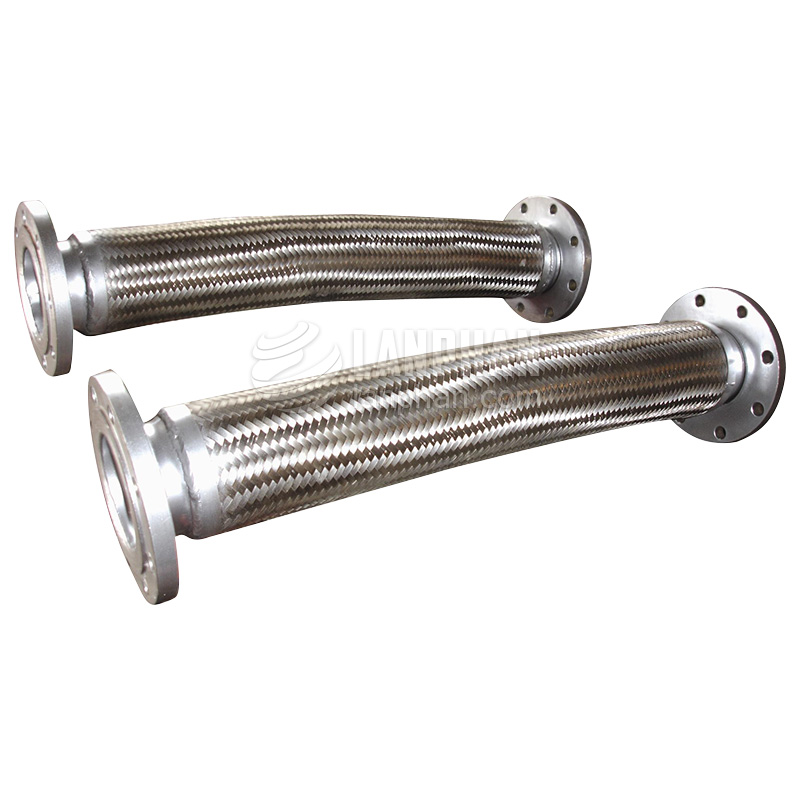

Namecorrugated expansion joint/bellows compensator/shock absorber
Size32-1600mm
Angle direction compensate10-100mm
Work temperature-196~420 deg. C
Angle direction compensate10-40 degree
Length100-2000mm or as custom request
PN0.1-6Mpa
Pressure150-1500Lbs
Consult standardAISI, ASME, GB/T14525-1999 or GB/T12777-2008 national standard
Materialcarbon steel, stainless steel, alloy steel, low-temperature steel
CertificationISO9001: 2000
Features large amount of compensation and long life
Delivery time10-25days
Undertake OEM:
Your own pictures, samples and ideas are also welcome. We promise to offer you best design and quality, competitive price and prompt delivery. Contact us now for more information.
