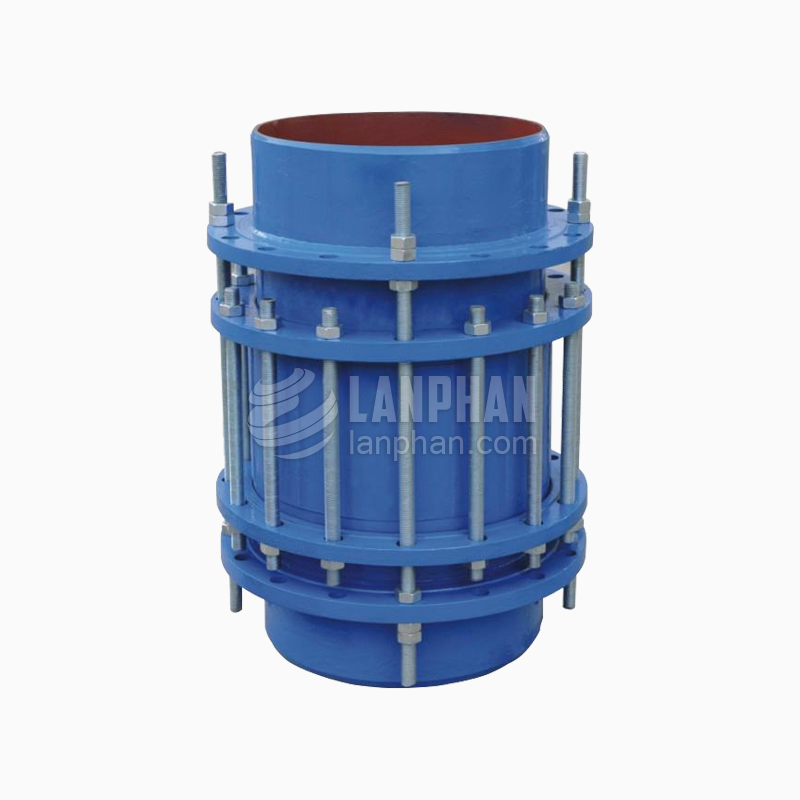

D-Type Flexible Loosing Compensation Joint

Product Description

Henan Lanphan Industry Co., Ltd:
1. Since 1988, Top 3 manufacturer of mechanical coupling in China;
2. The Main Drafting Committee of National Standard for Mechanical Coupling;
3. Qualified Supplier for Nuclear Power Plant;
4. ISO9001: 2008 and ISO14001: 2004 Certified.
E-mail:enquiry@lanphan.com
Product Description
Parameter
Order Online
Related Products
Follow Us: Facebookyoububetwittergoogle+linkenin
Product Description

Product Description

Performace Features
  The large deflection sleeve compensation joint is new type of pipe connector developed through absorbing forrrrrreign advanced technology and on the basis of combining the actual national situation. Its main structure includes short-tube flange ,gland,slide tube ,sealing device and so on .It uses the unique anti -axial force design,with simple structure,reliable sealing performance, and strong tensil srength.With relatively large flexible capacity and telescopic capacity,it is applicable to the pipelines in areas with harsh working conditions and complex terrain.
Parameter
Parameter



DN Flexible capacity Compensation length L D
100 7 60 520 305
200 560 415
300 605 530
400 660 645
500 670 750
600 720 870
700 6.5 65 750 960
800 810 1085
900 855 1185
1000 950 1305
1200 1000 1505
1400 1050 1715
1600 1140 1930
1800 6 75 1200 2150
2000 1250 2370
2400 1300 2570
2600 1420 2820
2800 1450 3020
3000 1500 3230
3200 1600 3440






1780 3685
