Home >Products > Metal Flexible Hoses > High Press

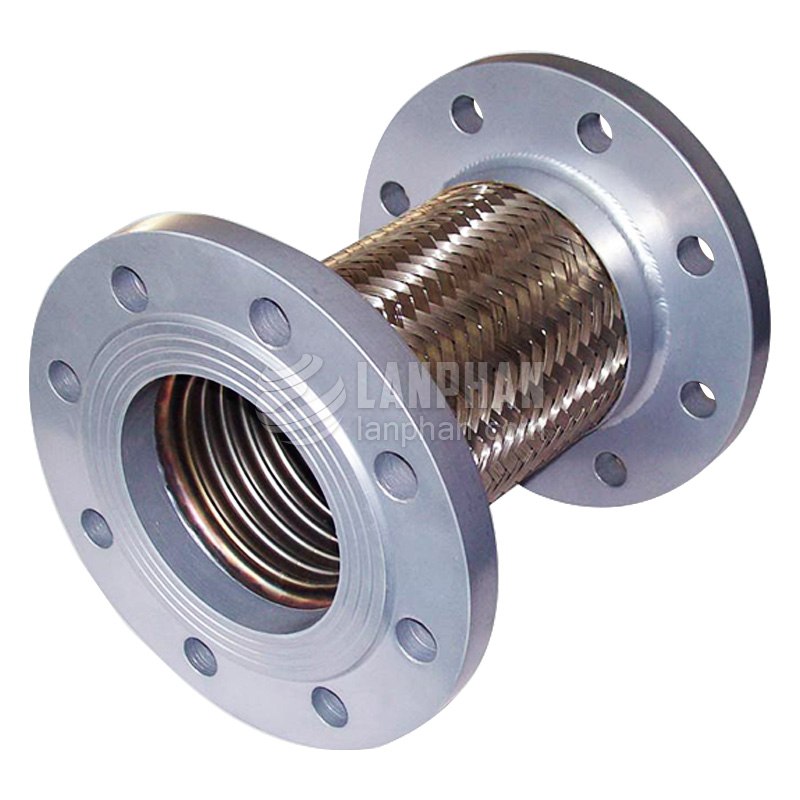

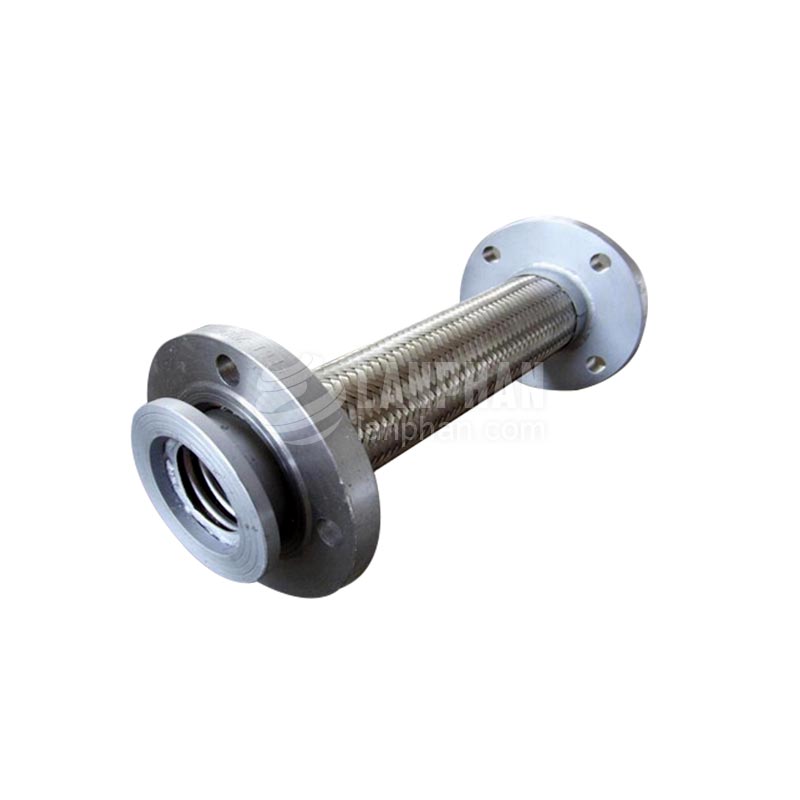

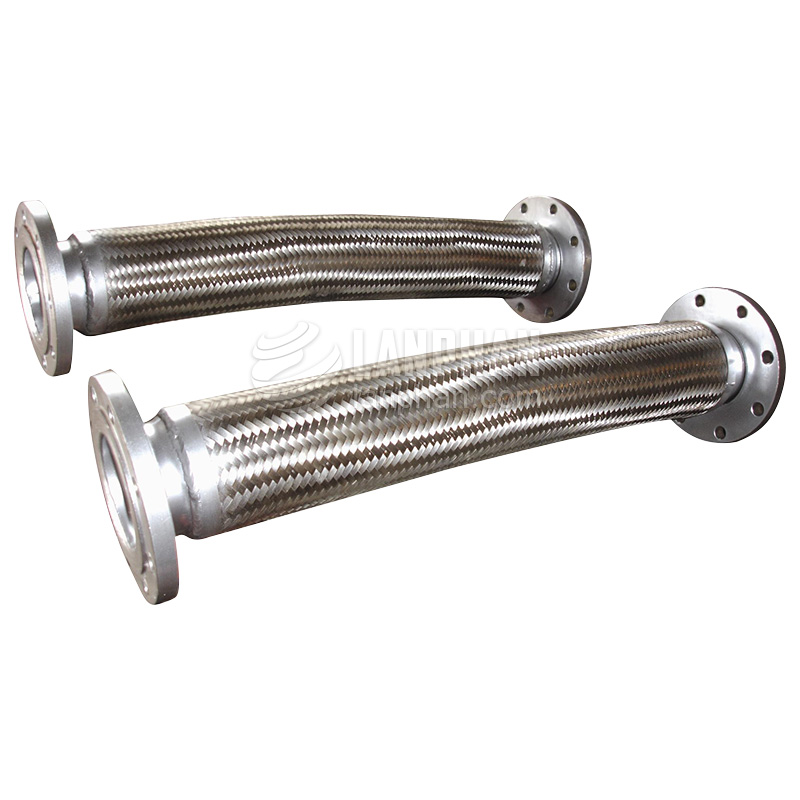

High Pressure Resistance Stainless Steel Metal Hoses

Additional Info.

Trademark:Lanphan
Packing:Wooden Case or as Your Request
Standard:ISO9001, ISO14001
Origin:Zhengzhou, China
Production Capacity:1000sets/Month



E-mail:enquiry@lanphan.com
Product Description
Parameter
Order Online
Related Products
Follow Us: Facebookyoububetwittergoogle+linkenin
Product Description

Product Description

Specifications

high pressure resistance stainless steel metal hose:

1.Resistance to fire/moisture/abrasion/penetration
2.A long usage life



Advantage

1 High physical strength with light weight.

2 A long usage life.

3 Good corrosion characteristics,resistance to fire,moisture, abrasion and penetration.

4 flexibility making it good for static installations or even where there is constant flexing in the application

5 Absorbs vibration and noise from pumps,compressors, engines etc.

6 Compensates for thermal expansion and contraction of piping.

7 Corrects problems of misalignment.

8 A flexible and quick alternative for rigid piping in difficult locations.



Application

Iron & steel industry/Petroleum and gas plants/Chemistry industry/Heating and cooling systems/Food industry/Automotive industry/Paper production plants/Maritime industry/Defence industry/Moving systems/Any kind of depot and tank connections

Company Information

Our company professionally manufacture and export stainless steel metal hose and hose assembly with male/female thread connection, swivel/fixed flange connection, cam lock quick coupling connection etc. We have professional technical person, equipment and rich production experience in this field, we can design produce the hose to meet any of your requirements.

Product Description

Pipe Diameter:DN1/2-16inch
Pipe Material:SS304,316
Pipe Type:Annular corrugated pipe
Pipe thickness:0.28-1.0mm
Braided mesh material:SS304
Braided mesh layer:single layer or double layers
Max. woking pressure:10Mpa
Working temperature:(-200)~(+600) °c
Connect type:flange
Standard :ANSI,JIS,DIN,GOST
Flange material:stainless steel or carbon steel
Pipe assembly length:according to clients' requirements
