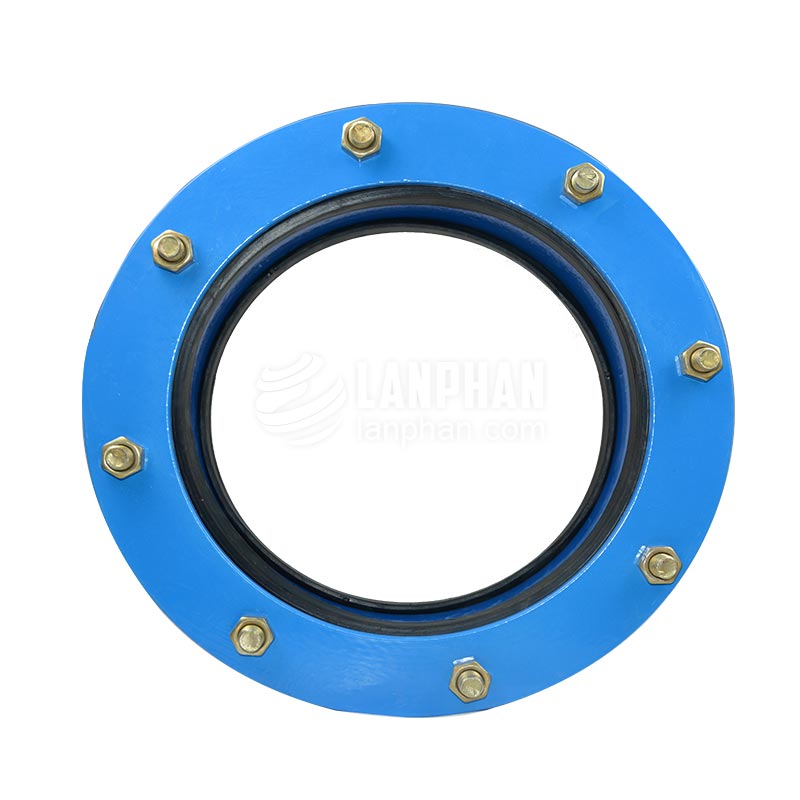

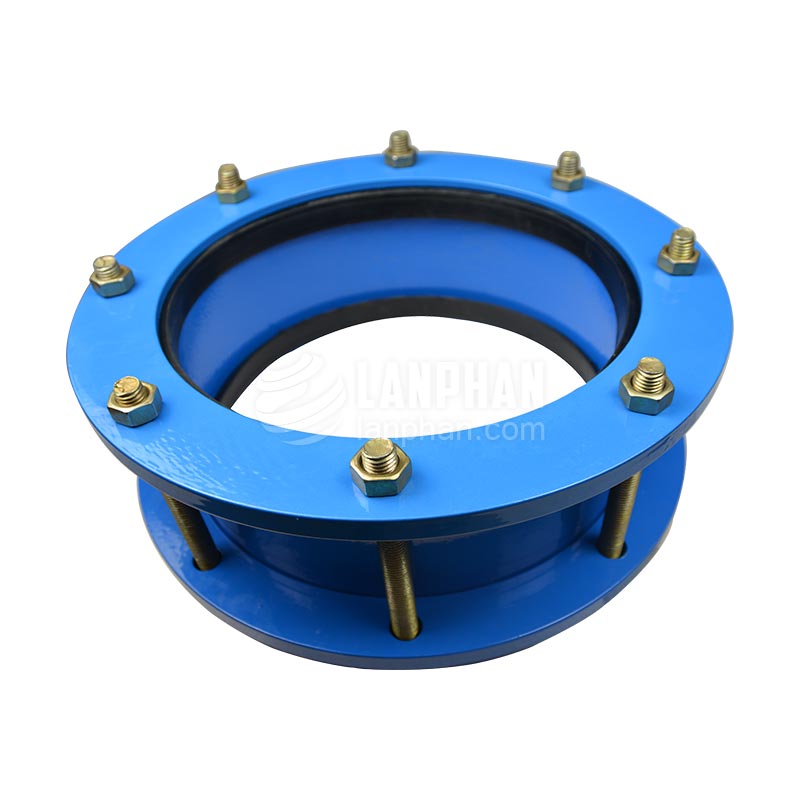

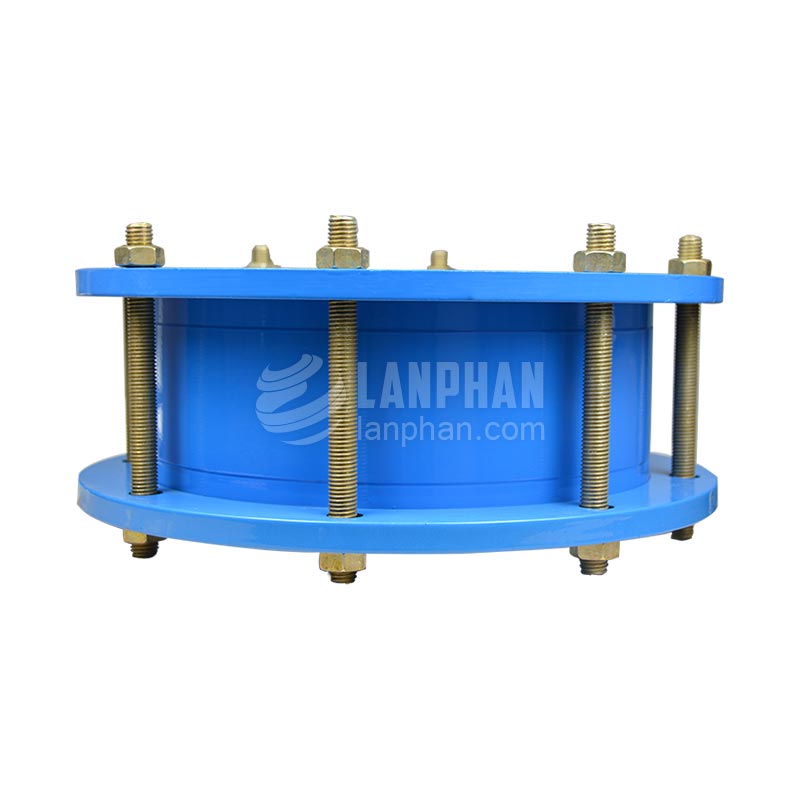

Metal-loosing Expansion Joint

1.Product Performance

The product is manufactured through welding or metal casting, and the loosing part is sealed by echelon ring rubber. Operated by gland and bolt and based on the principle of rubber’s elastic deformation under pressure, the seal ring will be deformed and static seal will be done between joint body and expansion pipe wall. According to clients demand and product performance, metal and seal ring materials will be selected strictly. High—strength antifouling paint is painted outside and the joint bolt is made of high—strength carbon steel or stainless steel, since there is some space between body and expansion, so axes and radial displacement will appear. Inside pipe, it becomes available to compensate and release pipe blind plate propulsion and makes it easy to maintain and change pump and valve. Therefore, it is an ideal matching product for pipe’s installation and operation.

2.Applicable Scope

The metal product is functioned with pull and pressure resistance and excellent seal performance and easy installation. Hence it is widely used in power, metallurgy, drainage and sewage disposal to connect pump, valve and pipe, etc. It also has some multi-directional displacement during pipes’ operation so as to release blind plate propulsion and protect pipes, especially it makes it easy to install and maintain pipes. However ,force-transferring joints shall be used on the pipe corner and pump exit, because ,the joints can transfer blind plate propulsion from pump start to pump and pipe through force—transferring bolt and prevent pull to centralize close to pipe or pump or damage equipment by impact force. Other joints can be selected freely for other positions.

Our tenet: your trust is our honor and will manufacture high—quality products for you.

3.Specifications

1>metal expansion joint 1.25 years experience

2>DN65mm-3200mm

3>easy installation

4>ISO9001,ISO14001,BV,CE,SGS certificate

4. Structure Diagram:

Technical Parameter for SSJB Gland Loosing Expansion Joint

Notes: if other satandard requirement or special flange need particularly customer made , please provide written drawing , standard , data , we can make customer-made for you

Quality System Authentification Certificate

Our Advantages:

(1)More than 24 years experience of manufacture

(2)The Main Drafting Units of Chinese Standard flexible rubber joint

(3)Compensator engineering research center of Zhengzhou city.

(4)Member of CNEA(China Nuclear Energy Association )

(5)ISO9001:2008 and ISO14001:2004 certificated by CNAS(China National Accreditation Service for Conformity Assessment)

(6)The largest vulcanizing equipment in China.
