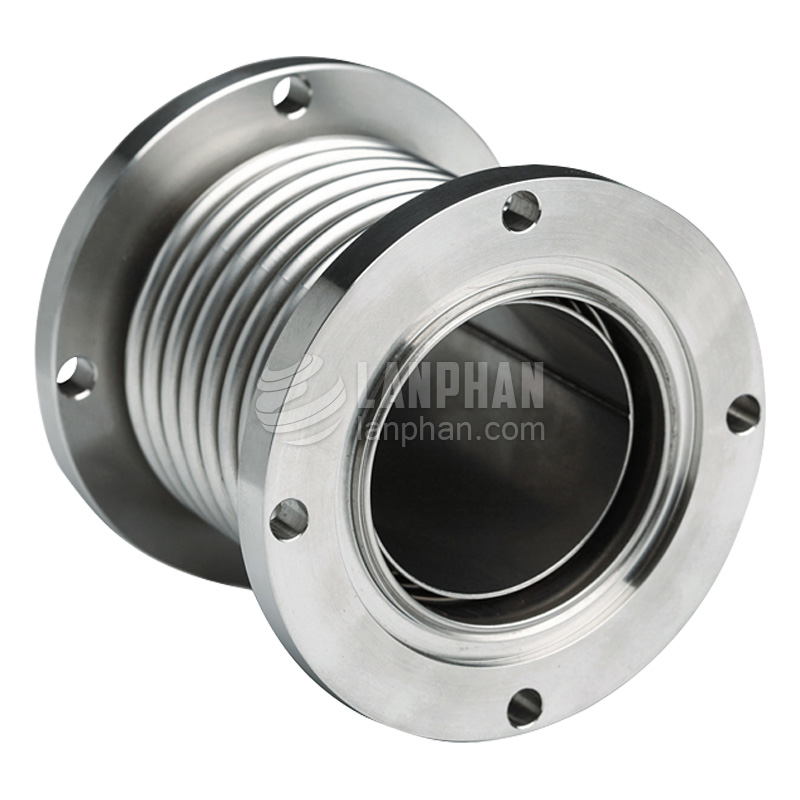

Stainless Steel Expansion Joint is the compensating element for thermal expansion and relative movement in pipelines, containers and machines. They consist of one or more metal bellows, connectors at both ends, and tie rods that depend on the application. They are differentiated according to the three basic types of movement: Axial, angular and lateral expansion joints.
Stainless Steel Expansion Joint is elastic vessel that can be compressed when pressure is applied to the outside of the vessel, or extended under vacuum. When the pressure or vacuum is released, the bellows will return to its original shape (provided the material has not been stressed past its yield strength).
Features:
Economical end usage
Providing for lower initial costs in piping & construction work
Applications:
Diesel engine sets
Pipelines
Turbines
Compressors
Blowers
Vacuum pumps
Heat exchangers
Advantages:
Reduce vibration
Dampen sound transmission
Compensate lateral, torsional & angular movements
Compensate axial movements
Minimal face-to-face dimensions
Lightweight
Low movement forces required
Reduced fatigue factor
Reduced heat loss
Corrosion, erosion resistant
No gaskets
Lanphan Stainless Steel Expansion Joint:
Why us:
Henan Lanphan Industry Co., Ltd. Is a leading manufacturer of stainless steel expansion joint in China. We have:
(1) Strong R&D strength;
(2) Strict Quality Control System;
(3) Perfect Test System;
(4) Professional After-sale Service Team;
(5) OEM Service.
We are your qualified supplier and reliable friends!
Thanks for your attention. For more information, please feel free to contact us.
| 3. Material List : | |||||||||||||||
| No. | Name | Material | |||||||||||||
| 1) | Inner rubber lining | IIR,CR,EPDM,NR,NBR | |||||||||||||
| 2) | Outer rubber lining | IIR,CR,EPDM,NR,NBR | |||||||||||||
| 3) | Casing ply | Polyester cord fabric | |||||||||||||
| 4) | Flange | Q235A,stainless steel | |||||||||||||
| 5) | Strengthening ring | Q235A | |||||||||||||
| 6) | Stopper | Q235A,stainless steel | |||||||||||||
| 7) | Limit bar | Q235A,35#,stainless steel | |||||||||||||
| 8) | Nut | Q235A,35#,stainless steel | |||||||||||||
| 4. Physical and Mechanical Properties of Rubber Expansion Joint : | |||||||||||||||
| No. | Item | index | Measured value | ||||||||||||
| Inner/outer rubber lining | |||||||||||||||
| 1) | Tensile strength (Mpa) | ≥12 | 13.5 | ||||||||||||
| 2) | Tensile yield (%) | ≥450 | 560 | ||||||||||||
| 3) | Tension set at break (%) | ≤25 | 20 | ||||||||||||
| 4) | Hardness (Shore A hardness) | 60±5 | 60 | ||||||||||||
| 5) | Brittleness temperature (°C) | ≤-30 | -40 | ||||||||||||
| 6) | Cohesive strength (between cord fabric) (KN/m) | ≥2.0 | 4.8 | ||||||||||||
| 7) |
100°Cx48h Hot air aging |
Rate of Tensile Strength Reduction | ≤25 | 15 | |||||||||||
| Rate of Ultimate Elongation Reduction | ≤30 | 20 | |||||||||||||
| 8) | Mass change (10%H2SO4*Room temperature) % | ≤3 | 2 | ||||||||||||
| 9) | Mass change (10%H2SO4*Room temperature) % | ≤3 | 2 | ||||||||||||
| 5. Technical Parameters for Double Sphere Flexible Rubber Joint : | |||||||||||||||
|
DN Diameter |
FF Length (mm) | Axis displacement | Radial displacement |
Deflexion displacement |
|||||||||||
| Type-I | Type-II | Type-I | Type-II | Type-I | Type-II | ||||||||||
| mm | inch | Extension | Compression | Extension | Compression | ||||||||||
| 32 | 1¼″ | 90 | 6 | 10 | 9 | ±7.5° | |||||||||
| 40 | 1½″ | 95 | 7 | 10 | 9 | ±7.5° | |||||||||
| 50 | 2″ | 105 | 7 | 10 | 10 | ±7.5° | |||||||||
| 65 | 2½″ | 115 | 7 | 13 | 11 | ±7.5° | |||||||||
| 80 | 3″ | 135 | 8 | 15 | 12 | ±7.5° | |||||||||
| 100 | 4″ | 150 | 10 | 19 | 13 | ±7.5° | |||||||||
| 125 | 5″ | 165 | 12 | 19 | 13 | ±7.5° | |||||||||
| 150 | 6″ | 180 | 12 | 20 | 14 | ±7.5° | |||||||||
| 200 | 8″ | 210 | 16 | 25 | 30 | 35 | 22 | 25 | ±7.5° | ±10° | |||||
| 250 | 10″ | 230 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° | |||||
| 300 | 12″ | 245 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° | |||||
| 350 | 14″ | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° | |||||
| 400 | 16″ | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° | |||||
| 450 | 18″ | 255 | 16 | 25 | 36 | 47 | 22 | 30 | ±7.5° | ±12° | |||||
| 500 | 20″ | 255 | 16 | 25 | 36 | 48 | 22 | 30 | ±7.5° | ±12° | |||||
| 600 | 24″ | 260 | 16 | 25 | 40 | 50 | 22 | 33 | ±7.5° | ±12° | |||||
| 700 | 28″ | 260 | 16 | 25 | 40 | 55 | 22 | 33 | ±7.5° | ±12° | |||||
| 750 | 30″ | 260 | 40 | 55 | 33 | ±12° | |||||||||
| 800 | 32″ | 260 | 16 | 25 | 45 | 55 | 22 | ±7.5° | ±12° | ||||||
| 900 | 36″ | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° | |||||
| 1000 | 40″ | 260 | 16 | 25 | 45 | 60 | 22 | 35 | ±7.5° | ±12° | |||||
| 1100 | 44″ | 300 | 45 | 60 | 35 | ±7.5° | ±12° | ||||||||
| 1200 | 48″ | 300 | 16 | 25 | 50 | 60 | 24 | 38 | ±7.5° | ±10° | |||||
| 1300 | 52″ | 300 | 50 | 60 | 38 | ±10° | |||||||||
| 1400 | 56″ | 350 | 50 | 70 | 40 | ±10° | |||||||||
| 1500 | 60″ | 350 | 60 | 70 | 40 | ±10° | |||||||||
| 1600 | 64″ | 350 | 18 | 25 | 60 | 70 | 24 | 46 | ±7.5° | ±10° | |||||
| 1800 | 72″ | 400 | 18 | 25 | 60 | 75 | 24 | 48 | ±7.5° | ±10° | |||||
| 2000 | 80″ | 450 | 70 | 75 | 50 | ±10° | |||||||||
| 2200 | 80″ | 400 | 70 | 75 | 50 | ±10° | |||||||||
| 2200 | 88″ | 500 | 70 | 80 | 60 | ±10° | |||||||||
| 2400 | 96″ | 500 | 80 | 80 | 60 | ±10° | |||||||||
| 2600 | 104″ | 500 | 85 | 80 | 60 | ±10° | |||||||||
| 2800 | 112″ | 550 | 85 | 80 | 60 | ±10° | |||||||||
| 3000 | 120″ | 550 | 85 | 80 | 60 | ±10° | |||||||||
|
nominal diameter DN |
length L |
axial displacement |
horizontal displacement mm |
deflexion angle a1+a2 |
||
|
mm |
inch |
extension mm |
compression mm |
|||
|
32 |
1 1/4 |
95 |
6 |
9 |
9 |
15 |
|
40 |
1 1/2 |
95 |
6 |
10 |
9 |
15 |
|
50 |
2 |
105 |
7 |
10 |
10 |
15 |
|
65 |
2 1/2 |
115 |
7 |
13 |
11 |
15 |
|
80 |
3 |
135 |
8 |
15 |
12 |
15 |
|
100 |
4 |
150 |
10 |
19 |
13 |
15 |
|
125 |
5 |
165 |
12 |
19 |
13 |
15 |
|
150 |
6 |
180 |
12 |
20 |
14 |
15 |
|
200 |
8 |
210 |
16 |
25 |
22 |
15 |
|
250 |
10 |
230 |
16 |
25 |
22 |
15 |
|
300 |
12 |
245 |
16 |
25 |
22 |
15 |
|
350 |
14 |
255 |
16 |
25 |
22 |
15 |
|
400 |
16 |
255 |
16 |
25 |
22 |
15 |
|
450 |
18 |
255 |
16 |
25 |
22 |
15 |
|
500 |
20 |
255 |
16 |
25 |
22 |
15 |
|
600 |
24 |
260 |
16 |
25 |
22 |
15 |
|
700 |
28 |
320 |
16 |
25 |
22 |
15 |
|
800 |
32 |
340 |
16 |
25 |
22 |
15 |
|
900 |
36 |
370 |
16 |
25 |
22 |
15 |
|
1000 |
40 |
400 |
18 |
26 |
24 |
15 |
|
1200 |
48 |
420 |
18 |
26 |
24 |
15 |
