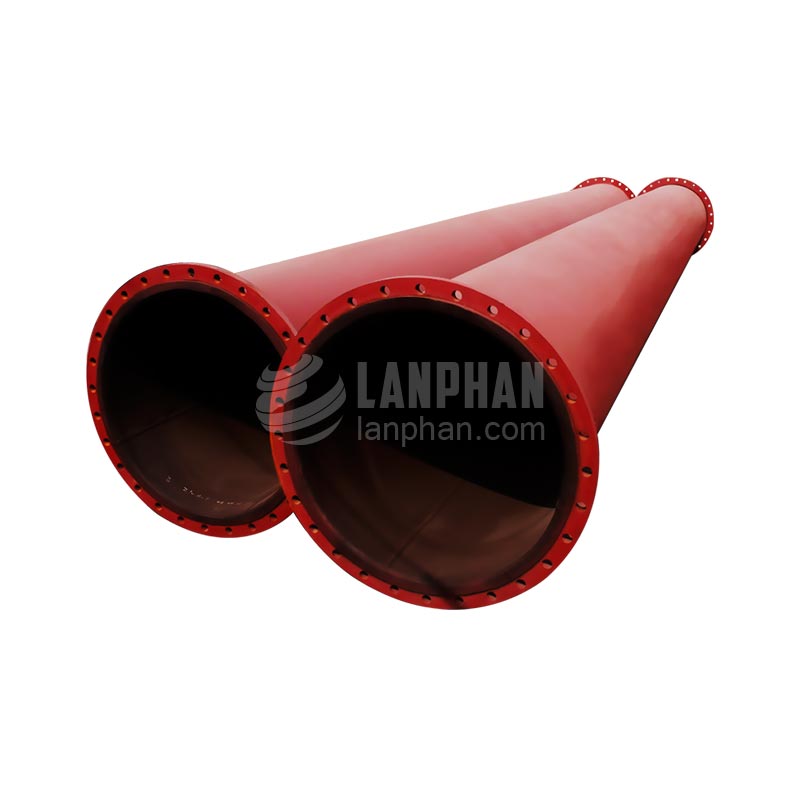

Vulcanizing Rubber Liner Slurry Pipe

1. Strong Impact Resistance

2. Excellent Anti-abrasion Properties

3. Less Running Resistance, Less Energy Consumption

4. Equal Mechanical Strength with the Steel Tube

5. Easy Installation and Maintenance

6. Good Durability, apply to Harsh Environments such as Desert, Salt and Alkali.

7. Smooth Pipe Wall ensures High Transport Power and Long Service Life.

E-mail:enquiry@lanphan.com

Product Description

Vulcanizing Rubber Liner Slurry Pipe

1. Greatest impact resistance

Under very high impact the rubber will be deformed and absorb the kinetic energy of granule, and then rebound most of the energy to

granule in the form of return, in order to reduce the impact force and improve the life greatly.

2. Good wear resistance

Rubber lined can be chosen according to the need of anti-abrasion, and suitable for the environment with more anti-abrasion.

3. Fine anti-corrosion

Rubber lined can be carried out according to the need of anti-corrosion, and applicable to the environment with high corrosiveness.

Rubber lined can bear the anti-corrosion from all kinds of acid, alkali, salt, organic substance, seawater, waste water and so on, and can

be used in complicated and harsh chemical corrosive environment.

4. Adapting to wide range of temperature

Rubber lined steel pipe can be used within -40 degrees and 140 degrees for long term, and rubber lined layer will not be torn off the steel

frame due to temperature change.

5. Less running resistance able to reduce energy consumption

The rubber layer of rubber lined pipe is smooth and flat.

6. Good steel pipe

Steel pipe is applied to the need of variety pressures, and can protect the rubber lined at the same time.

7. Light weight, easy to install, maintain and transport

The steel pipe only plays the role of supporting pressure, and it can be thinned to the minimum extent of supporting pressure, so its weight is 20-30% lighter than ordinary steel. The lifetime of rubber lined steel pipe is umpty times more than the steel pipe, so the investment is low during the average lifetime. Rubber lined pipe is light, and can save the bracket expense. The resistance depletion is low and rubber lined pipe can save the running expense, so the general cost of rubber lined pipe is reduced greatly, and can save more money for customers.

8. Recycling and reused

The investment is disposable for steel pipe, and we can line rubber and keep using after repairing the steel pipe. Its lifetime will amount to 4 to 5 times that of metal pipe after lining rubber, and also save the money further

Physical Indices of Vulcanizing Rubber Liner Slurry Pipe

Item	Index
Breaking Strength of Lining Layer (MPa)≥	16.5
Lining and Skeleton 180.Peeling Strength:(KN/m)≥	8
Breaking Elongation of Lining Layer:(%)≥	550
Given Tensile Stress of Lining Layer:(300%,MPa)≥	9
Akron Abrasion Reduction of Lining Layer:(cm3/1.61km)≤	0.1
Lining Hardness(Shore A)	60±5
Change Rate of Breaking Strength with Hot Air Aging (70°C×72h,%)≤	10
