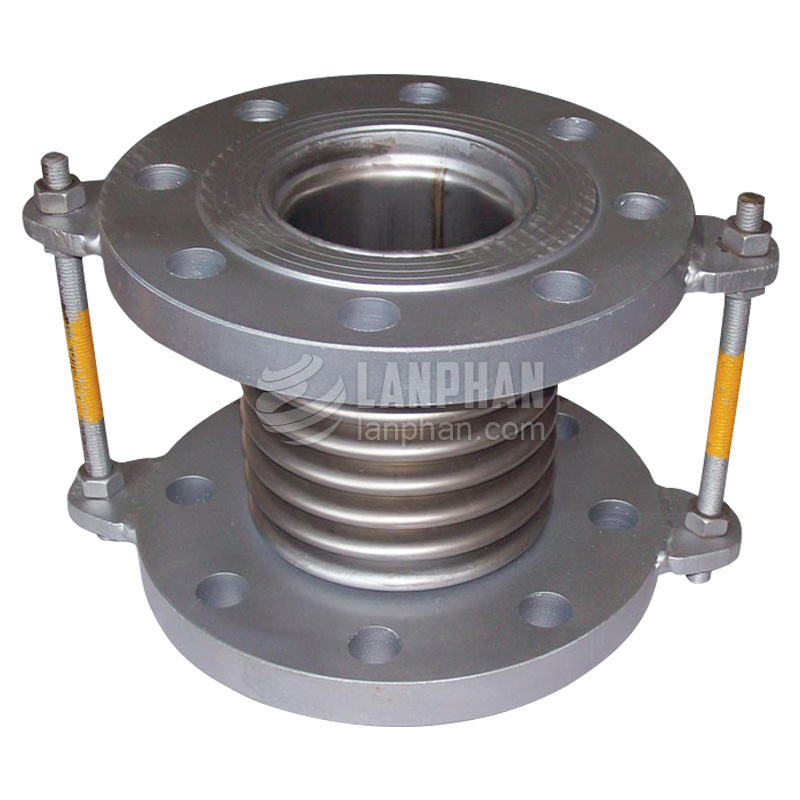

1. Stainless Steel Bellows Expansion Joint

Stainless steel expansion joint, also known as stainless steel bellows, stainless steel compensator, metal bellows expansion joints, stainless steel expansion joints and metal bellows, are mainly used to compensate for axial displacement. Stainless steel expansion joint can also compensate for axial displacement or synthesis of axial displacement and lateral displacement. Metal bellows expansion joints have the capacity to compensate for angular displacement.

2. Application Range of Stainless Steel Bellows Expansion Joint

Diesel engine sets

Pipelines

Turbines

Compressors

Blowers

Vacuum pumps

Heat exchangers

3. Features of Stainless Steel Expansion Joint

Nominal diameter: DN100-DN3000 (mm)
Design pressure: 0.1 ~ 2.5 (Mpa)
Design temperature: -20 ° C ~ 450 ° C
Connection: Flange / weld
Fatigue life: 1500 times

4. Steel expansion bellows classification

1) According to whether can absorb piping within the medium pressure generated by the thrust (blind plate force), steel expansion bellows can be divided into no constraint expansion bellows and constraint expansion bellows;

2) According to the displacement type of expansion bellows, it can be divided into axial type, horizontal type expansion bellows, and angular type expansion bellows and pressure balance type expansion bellows.

Notes: When ordering please provide the name of the air fans manufacturer and detailed connecting sizes.

If other satandard requirement or special flange need particularly customer made, please provide written drawing, standard, data, we can make customer-made for you.
