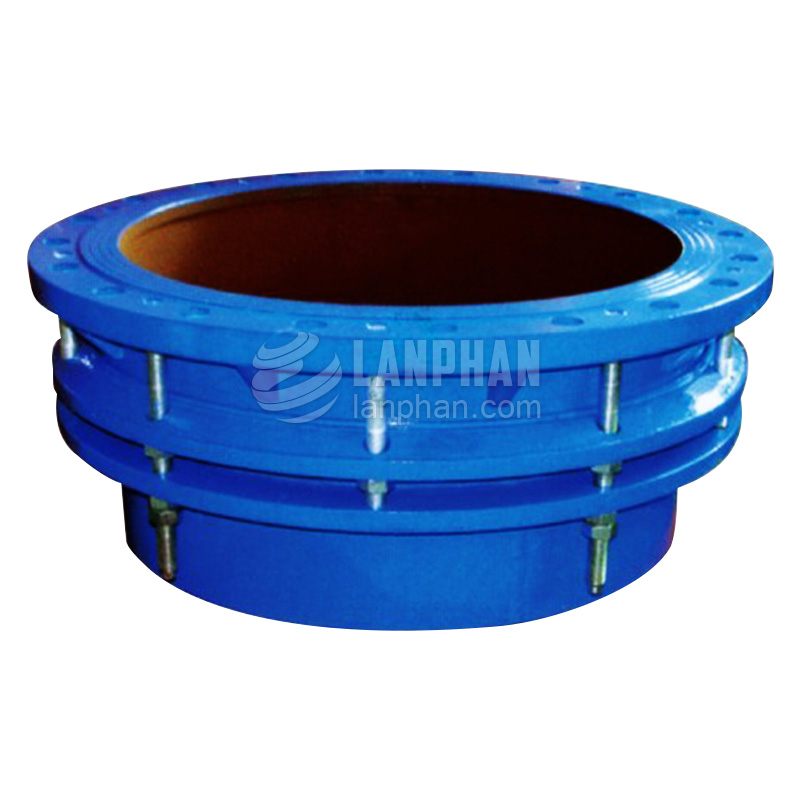

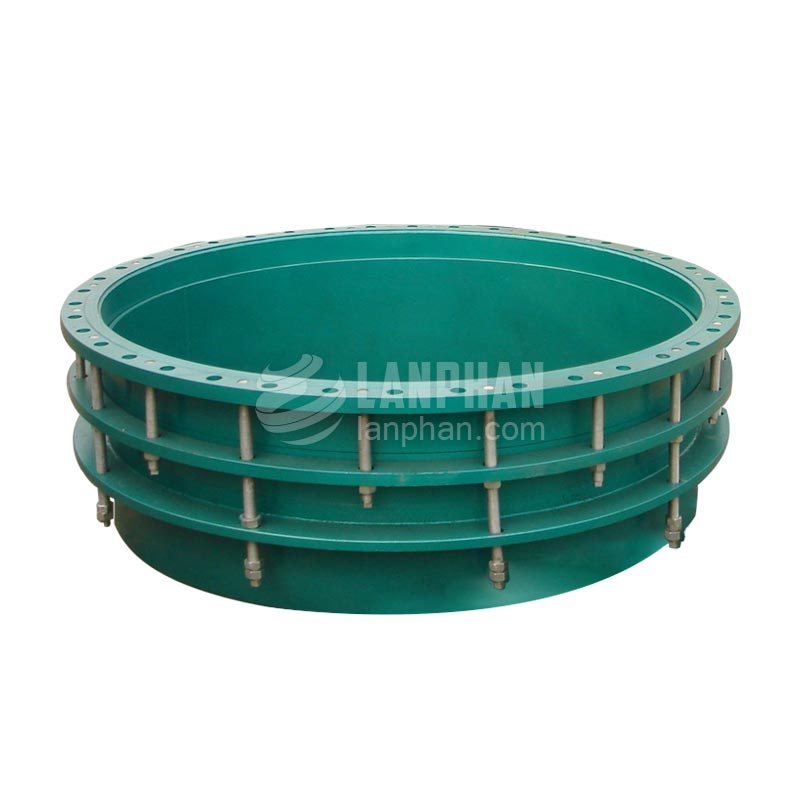

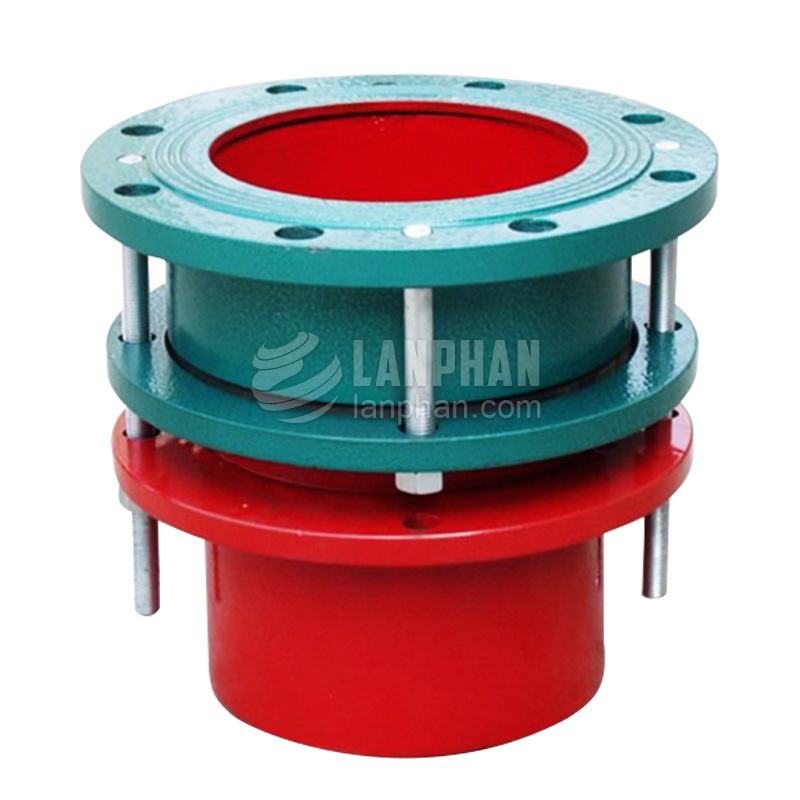

1.Product Performance OF One-Flange Stop-Loosing Dismantling Expansion Joint(VSSJA-1)

1) The product is manufactured through welding or metal casting, and the loosing part is sealed by echelon ring rubber.
2) Operated by gland and bolt and based on the principle of rubber`s elastic deformation under pressure,

3)The seal ring will be deformed and static seal will be done between joint body and expansion pipe wall.

4)Metal and seal ring mate- rails will be selected strictly.
5)High- strength antifouling paint is painted outside and the joint bolt is made of high- strength carbon steel or stainless steel, since there is some space between body and expansion, so axes and radial displacement will appear.
6) Inside pipes, it becomes available to compensate and release pipe blind plate propulsion and makes it easy to maintain and change pump and valve.
Therefore, it is an ideal matching product for pipes installation and operation.

2.Applicable Scope OF One-Flange Stop-Loosing Dismantling Expansion Joint(VSSJA-1)

1) Pull and pressure resistance and excellent seal performance and easy installation.
2)It has some multi-directional displacement during pipes operation so as to release blind plate propulsion and protect pipes,
3) Easy to install and maintain pipes.
4) Force- transferring joints shall be used on the pipe corner and pump exit, because, the joints can transfer blind plate propulsion from pump start to pump and pipe through force- transferring bolt and prevent pull to centralize close to pipe or pipe or damage equipment by impact force.
5) Other joints can be selected freely for other positions.
Our tenet: Your trust is our honor and we will manufacture high- quality products for you.

We can design and make the products according to your drawings and techincal requirements. The quality is better and the price is lower than the similar products another company make.

3.Packaging & Delivery

1)PackagingDetails: Metal joint package outside package: Wooden case inside package: Plastic film and textile membrane if necessary, we will change as your request
2)Delivery Detail: 7-40according to the amount you booked

NOTES: IF OTHER STANDARD REQUIREMENT OR SPECIAL FLANGE NEED PARTICULARLY CUSTOMER MADE, PLEASE PROVIDE WRITTEN DRAWING, STANDARD, DATA, WE CAN MAKE CUSTOMER-MADE FOR YOU.
