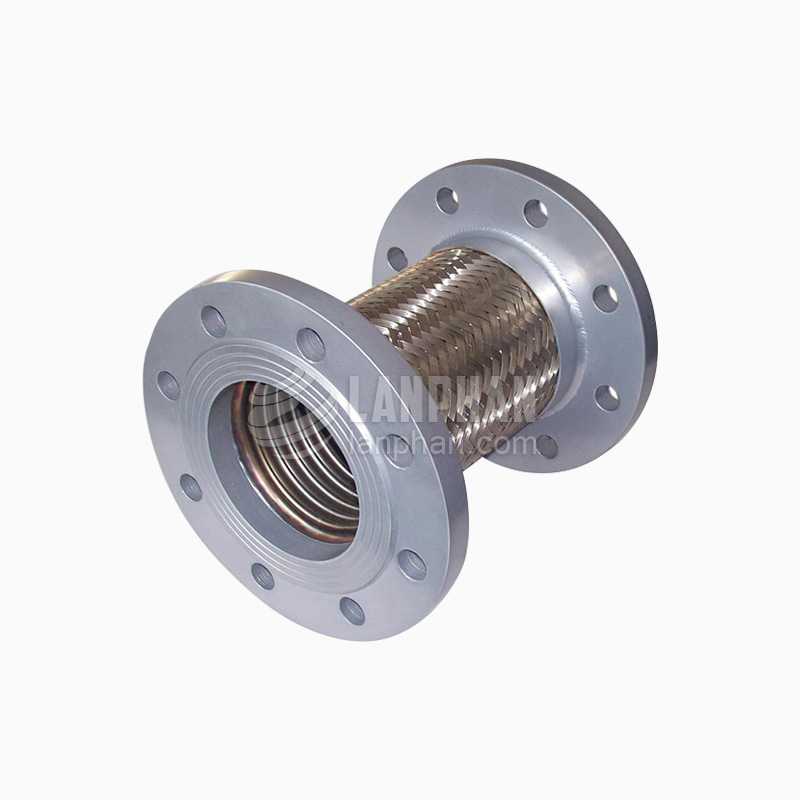

Stainless steel flange flexible vacuum braided hose and fittings can be used widely in systems like water,
steam, hot oil andgas with their resistance to pressure and flexible structure.

They are utilized for conducting liquids, compensating the problems originated from installation,absorbing vibrations and expansions.

Stainless steel flange flexible vacuum braided hose may be strengthened by double braiding in order to increase
their resistance topressure and environmental conditions. It is also possible to
reinforce them by springs with different wirethicknesses or by stripwounds to lengthen their service life for more severe environmental conditions.

Material Specifications

Hose AISI 316L-304L-321 S.Steel

Braid Wire AISI 304 Stainless Steel

Connections Carbon Steel-Stainless Steel

Structure of stainless steel flange flexible vacuum braided hose :

Inner Core: Corrugated Stainless Steel

• Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
• Stainless steel tubing formed into corrugations parallel to one another
• Helical / Convoluted option available upon request

Outer Core: Braided Stainless Steel Layers

• Purchase corrugated core hose with no layers, single or double braided
• Flexible metal hose outer braid layers made from 304 stainless steel

Features of stainless steel flange flexible vacuum braided hose :

1. With good characteristics of light weight, large diameter ,good flexibility,
resistant to high temperature, high pressure and corrosion
2. With available double SUS304 wire braid for higher working pressures.
3.The inner tube is made of stainless steel corrugated tube which equips with good performance
of high-temerature and high-pressure resistance.
4. Applied to repeated motion in high temperature areas, good anti-fatigue performance.

Installation and use notice:

1. Stainless steel hose corrugated pipe is made of CR-NI austenite stainless steel body, pay attention to when using prevent nitrogen ion point corrosion and dilute sulphuric acid, dilute sulfuric acid corrosion damage.

2. The user is equipped with stainless steel hose water pressure the experiment on equipment, piping, should prevent rust impact, chlorine ion and sediment deposition, corrosion and mechanical damage.

3. When installing metal hose to prevent welding splash burns and mechanical damage, otherwise it will cause leakage.

4. Sealing pipe should strictly abide by rules of safe operation, prevent overpressure caused by improper operation or other factors caused the hose pulled off or blasting.

5. Please carefully digest stainless steel hose installation method, for example, and in strict accordance with the correct sketch install and use.

Main connecting dimension of stainless steel flange flexible vacuum braided hose :

Stainless steel flange flexible vacuum braided hose package is plastic film and wooden case.
